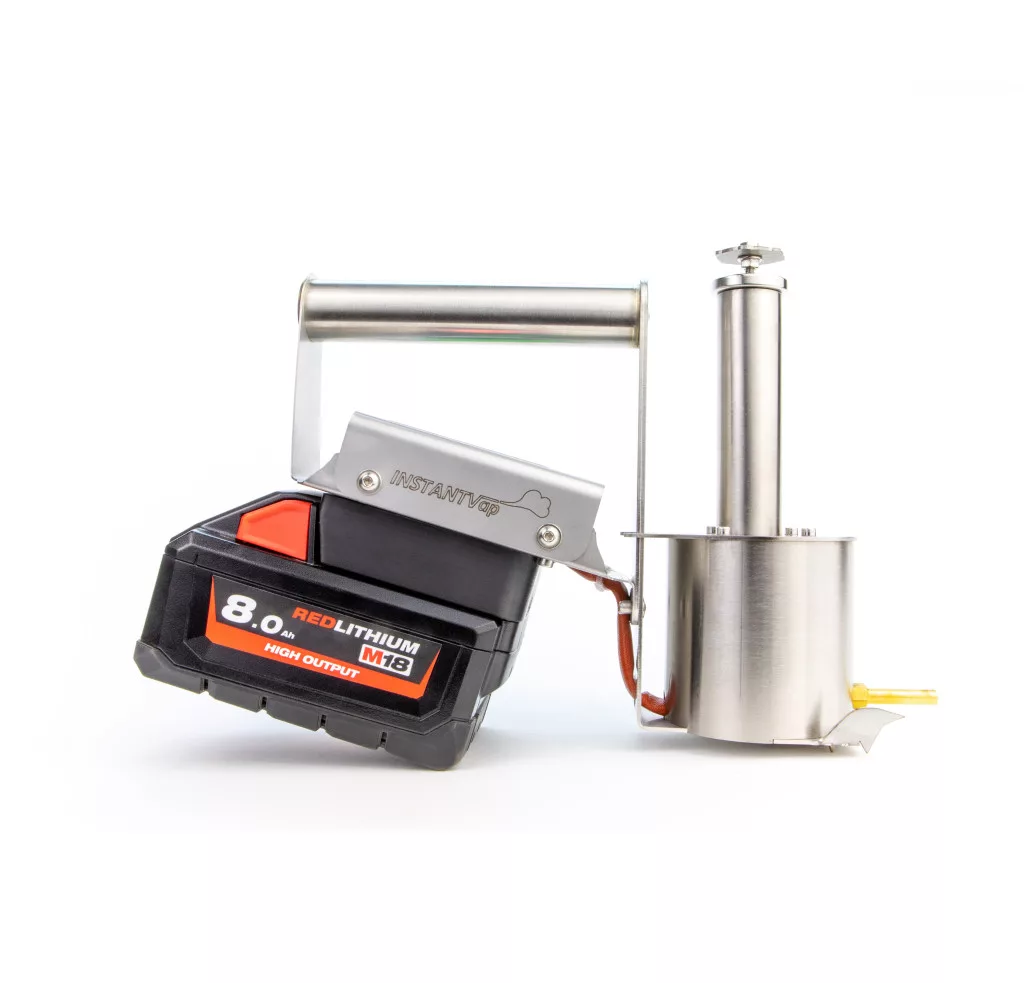

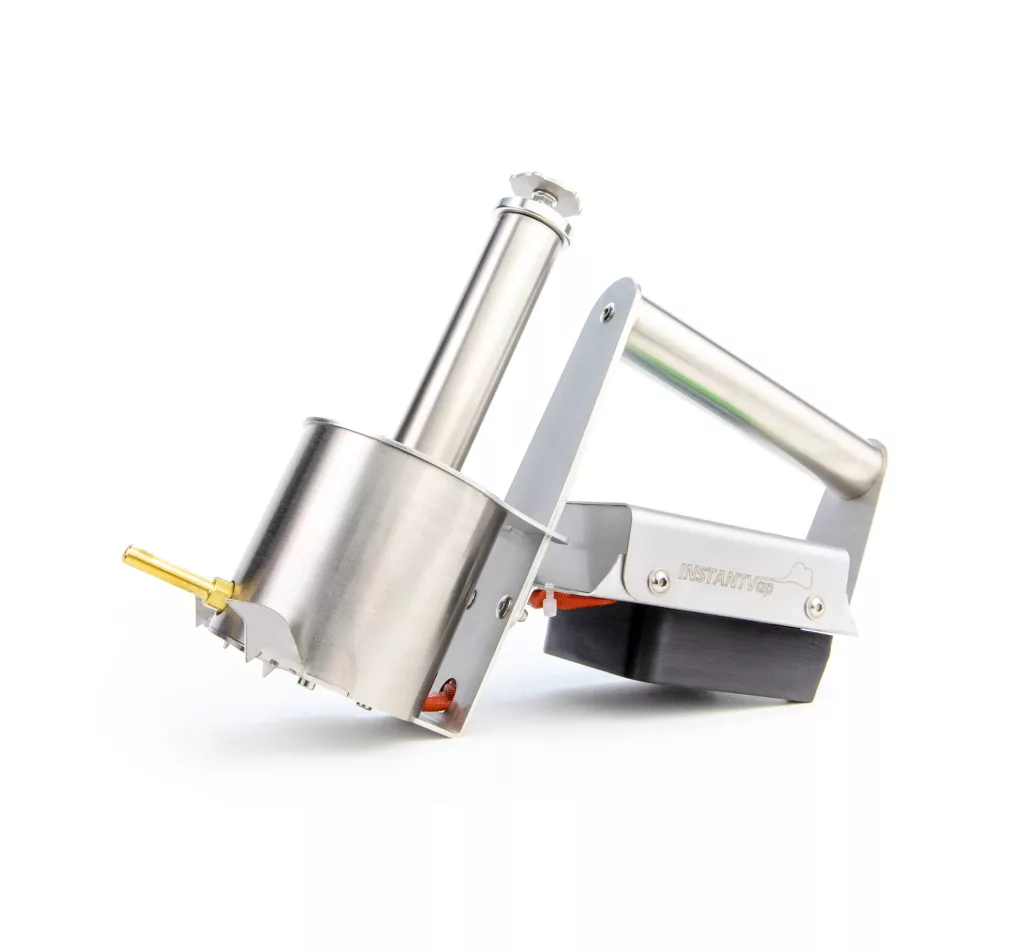

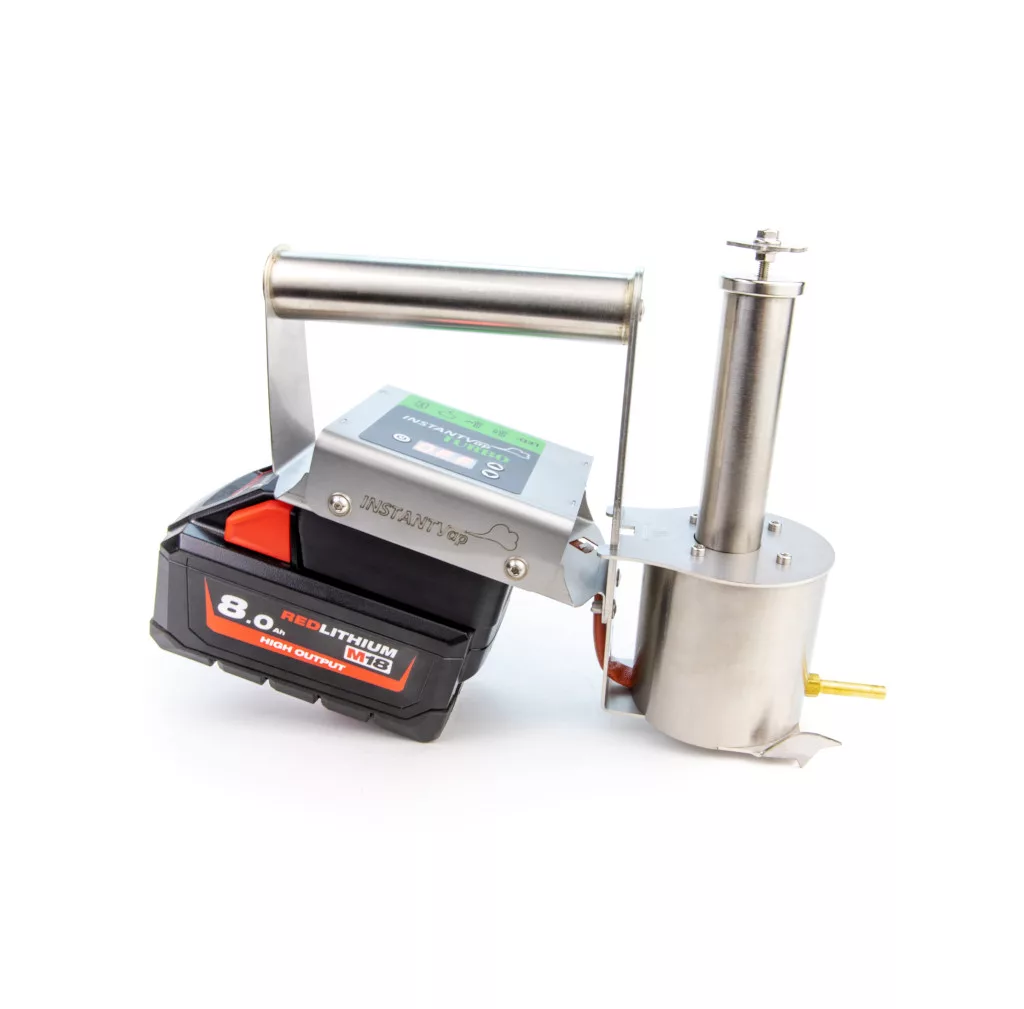

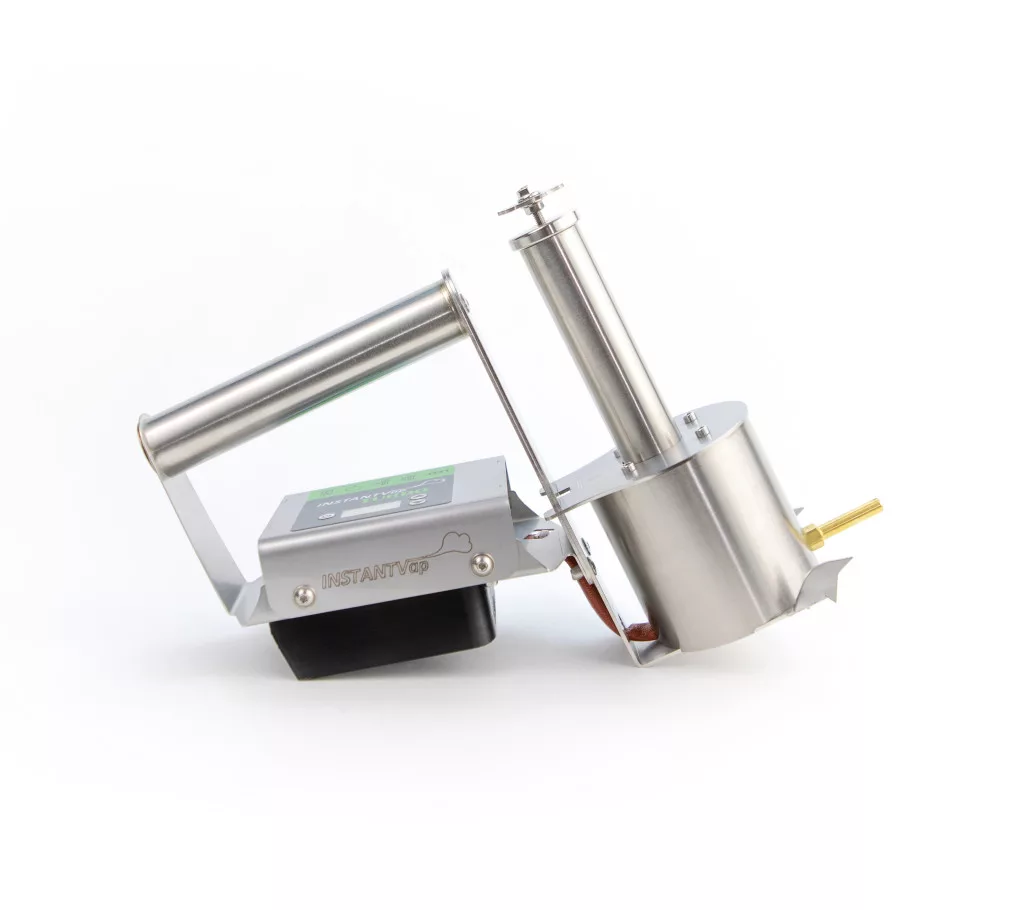

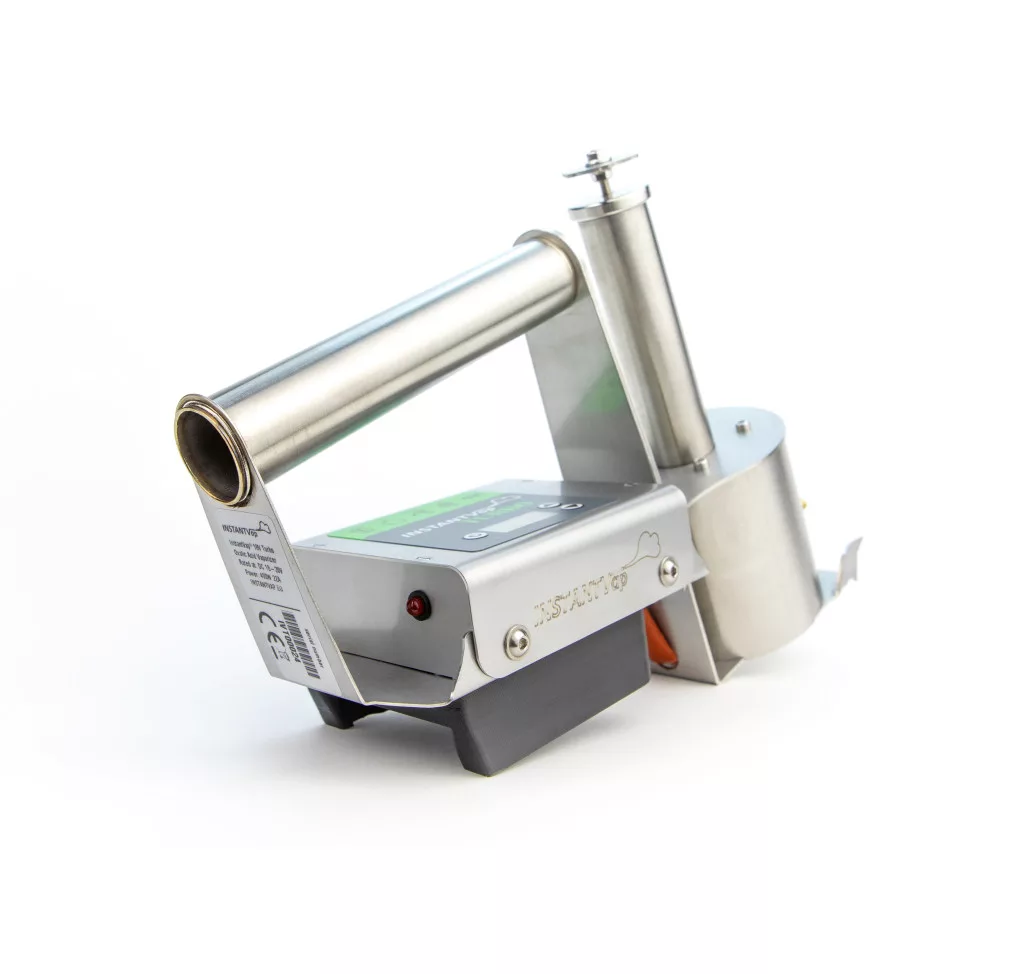

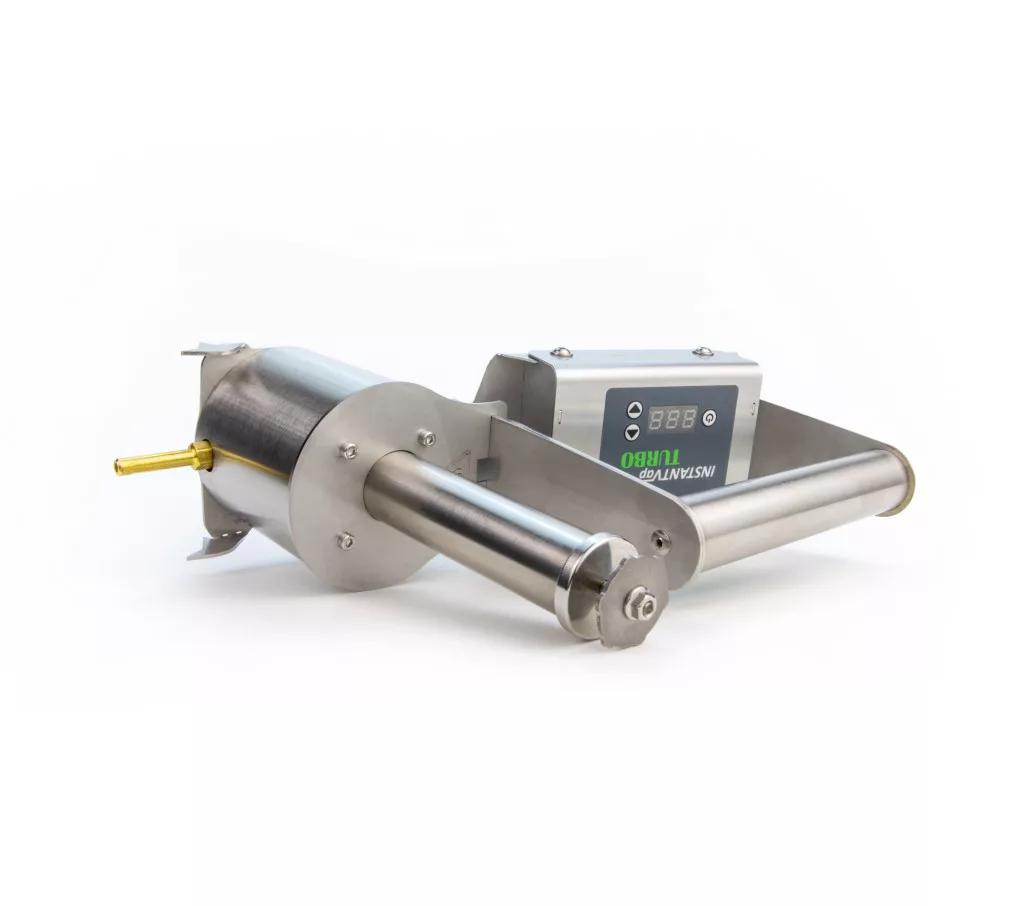

InstantVap^® 18V Turbo battery powered, cordless oxalic acid vaporizer

Power: 18V-20V DC; 400W; 22A

Approximately 1Ah required for heating up, then 1Ah provides enough power for 8 x 2 grams of oxalic acid treatment at 20°C ambient temperature

With 2 gram doses of oxalic acid, one treatment takes around 10 seconds at the optimum set temperature.

Available battery socket options:

- Parkside® X20V-TEAM 20V

- Einhell® Power X Change 18V

- Metabo® 18V

- Makita® LXT 18V

- Milwaukee® M18

- Bosch® GBA/ProCore 18V

- Dewalt® XR 18/20V, FlexVolt 20/60V or 18/54V

- AEG® 18V/Ridgid® 18V

- Hikoki®/Hitachi® 18V/Metabo HPT

The device can be compatible with only one type of battery!

Requires a battery of minimum 4AH capacity.

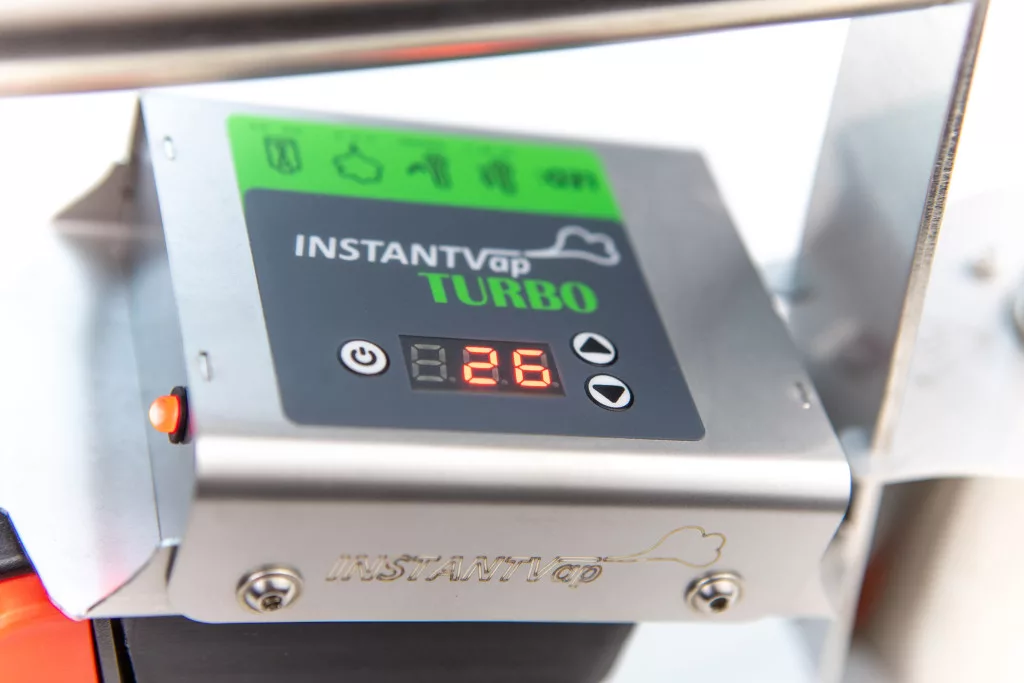

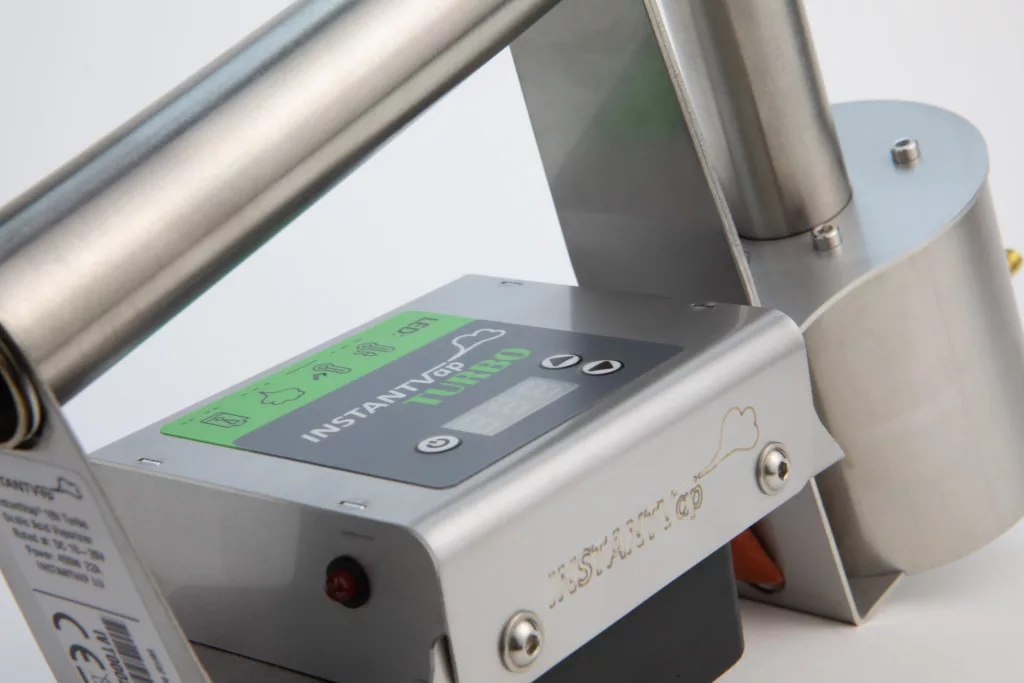

LED Display:

- display temperature and battery voltage

- adjustable temperature from 230 to 260

- switch between C and F

- records total number of cycles run

- number of cycles with current battery

- indicates discharged battery

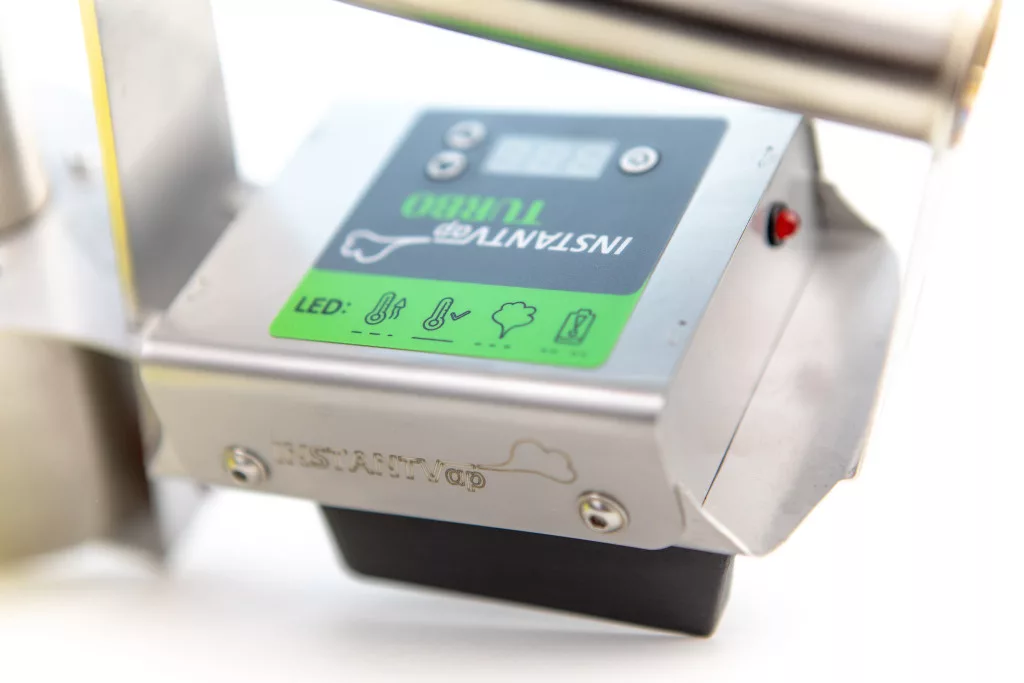

Intelligent LED Feedback:

- Slow blinking: warm-up

- Steady-on: ready for dosing

- Fast blinking: vaporizing in progress

- Double blinking and pause: battery discharged

Adjustable operating temperature: 230ºC (446ºF) – 260ºC (500ºF)

Optimum set temperature: 260C (500ºF)

Accurate, dynamic temperature control; no overheating, no waiting for cool-down

Acid-resistant stainless steel frame and dispenser

Fast, tool-free, roll-on adjustment of the oxalic acid dispenser, with 1-4 gram scale, dispensing oxalic acid with one push

Spare Dispenser Storage: Conveniently store an extra oxalic acid dispenser in the handle

6mm diameter strong brass spout, not prone to clogging as there is no pipe bend. Easy to access and clean in case of a blockage, the entire length of the tube is accessible. The spout is replaceable.

Requires a 6,5mm diameter hole in the hive wall

Stable in the hive hole, does not fall out or tilt sideways, can support its own weight (do not lean on it!)

Double-wall furnace, works well in cold, windy weather

The device is equipped with over-discharge protection circuit, meaning it automatically shuts down at 15,2V.

Package includes: oxalic acid vaporizer equipped with the battery socket of your choice, 1 piece of oxalic acid dispenser, 1 piece of cleaning cap, 2 spare O-rings for the dispenser

Without battery!

2 years warranty and post-warranty repair provided

Parts of the design are patent protected!

CE certified.

Designed and made in Hungary.
